Digital clock repair kit 83-85.
The repair kit contains a new digital clock in a customized case.
You can reuse your original VEGLIA Borletti VEGLIAFLASH cover.
ATTENTION: Since the adjustment buttons on the new digital clock are located in a different location than on the VEGLIA clock, the buttons on the VEGLIA cover no longer have any function.
FIAT OE number: 4426031
| Weight | 0,150 kg |
|---|---|
| Fits model Fiat 124 | DS 2000 MY 83-85 Fuel injection, DS/VX 2000 MY 84-85 Supercharger |

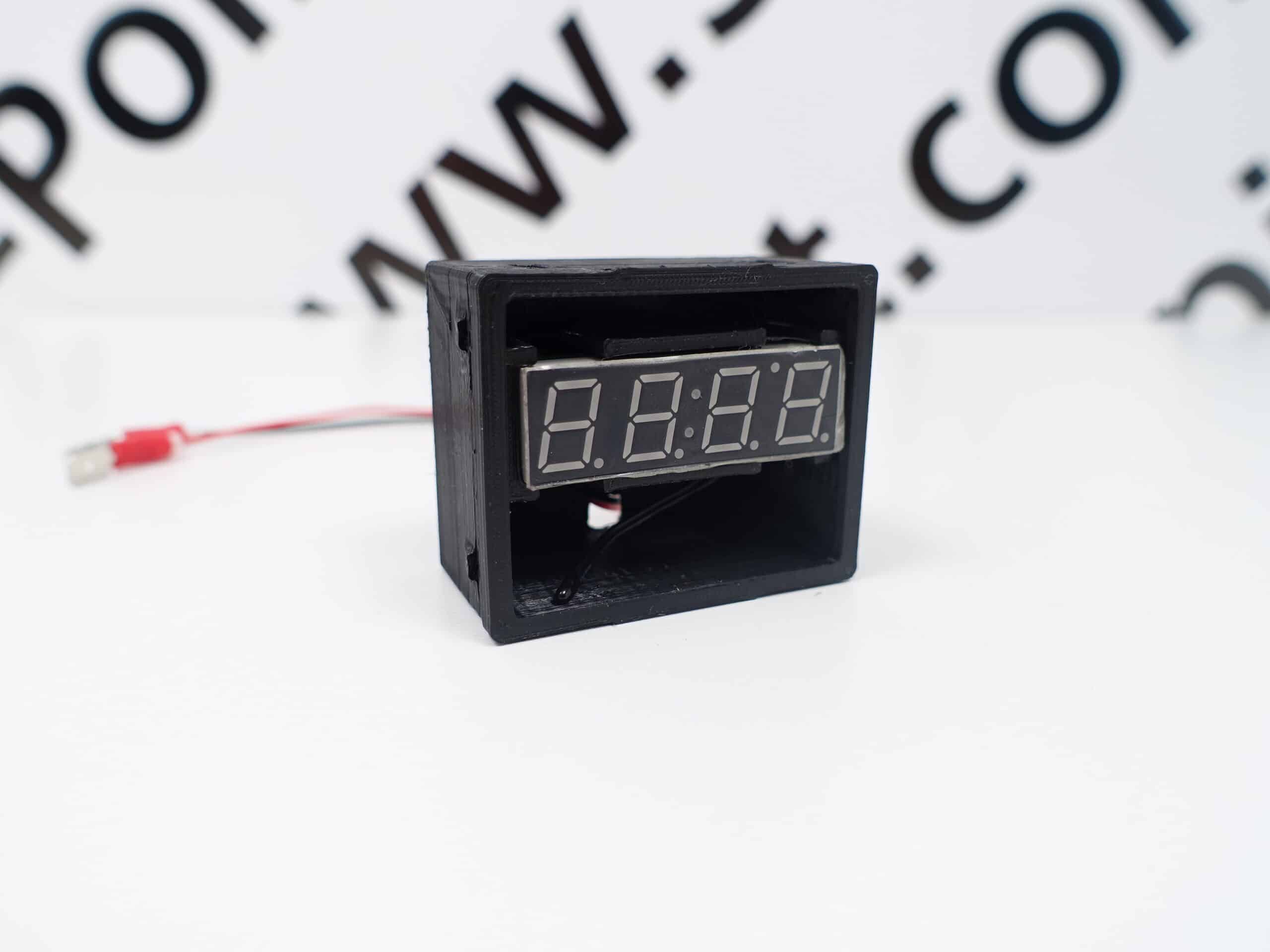

Reproduction of the digital clock:
The reproduction has two connections:
Ground (black wire)
+12 V (red wire)
In addition, it has an integrated battery that stores the time for a certain period of time, even when there is no voltage.
Connection options for the red wire (12 V) in the reproduction:
Connect to grey phase: The display is only activated when the engine is running. Attention: When the engine is switched off, the clock runs exclusively on the built-in battery. Depending on the time of inactivity, the time may be lost and must be reset.
Connect to red phase: The display is permanently active, even when the engine is switched off (provided 12 V is present).

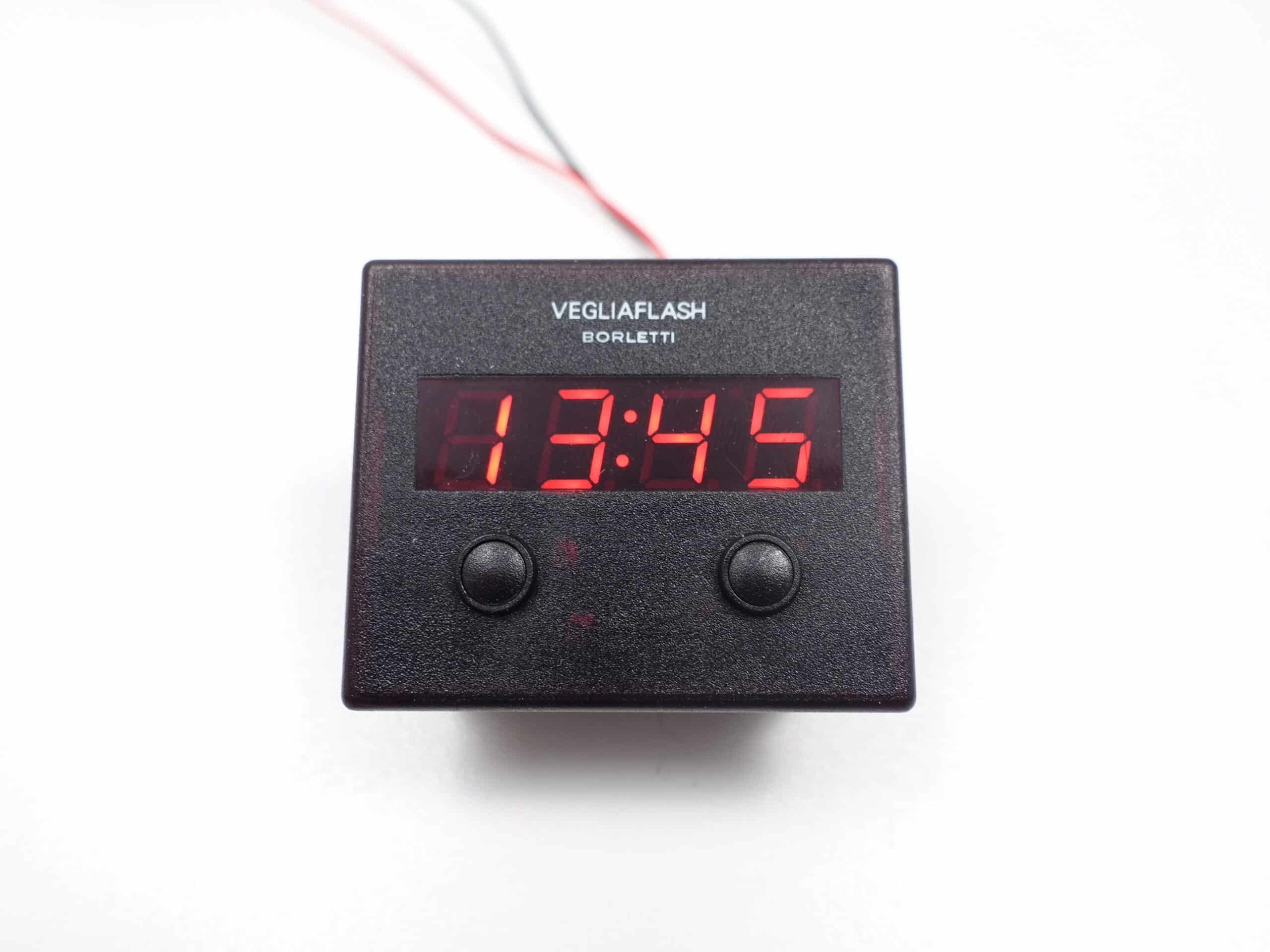

Original VEGLIAFLASH:
The original clock has four connections:
+12 V permanent (red wire): Continuously supplies the clock with power to store the time – even when the ignition is off.
+12 V via ignition (grey wire): Activates the display when the engine is running.
+12 V via parking light (yellow wire): Activates the display when the parking light is on.
Ground (black wire)
Note: In both versions (original and reproduction) the ground is connected via the black wire.
Digital clock repair kit 83-85.
The repair kit contains a new digital clock in a customized case.
You can reuse your original VEGLIA Borletti VEGLIAFLASH cover.
ATTENTION: Since the adjustment buttons on the new digital clock are located in a different location than on the VEGLIA clock, the buttons on the VEGLIA cover no longer have any function.
FIAT OE number: 4426031
€26,57
