Thermostat kit 74-85 HP version (72 degrees).
The thermostat kit includes the following components:
– 3-way housing, open, 74-85 (without thermostat insert)
– Thermostat (opening at 72 degrees)
– Gasket on the water tee
| Weight | 0,27 kg |
|---|
Installation Instructions for Thermostat Kit 74–85 HP Version – FIAT 124 Spider
Around 1974, the cooling system of the FIAT 124 Spider was modified: a bypass system was introduced, and the thermostat was relocated from the cylinder head to a 3-way housing.
With this thermostat kit, we reverse that change: the thermostat is once again mounted directly in the cylinder head.
Installation Steps:
Preparing the Gasket:
Shape the gasket slightly conically as shown in Image 3, so that the radius at the bottom becomes a little smaller. This makes it easier to insert the gasket into the cylinder head.
Installing the Thermostat:

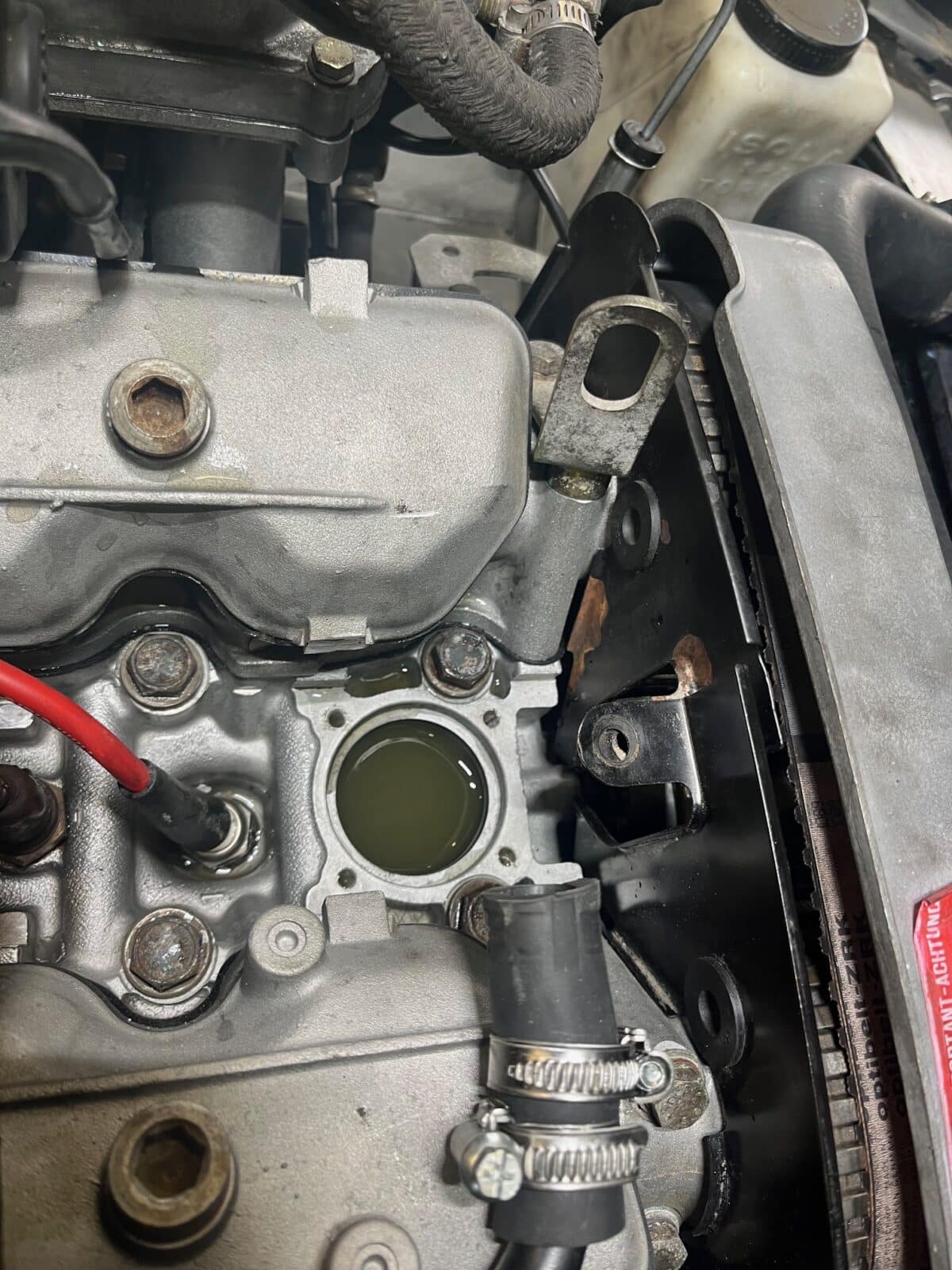

Make sure that the longer part of the thermostat disappears completely into the cylinder head.
Mounting the Thermostat Housing:
Attach the thermostat housing and reconnect the cooling system by installing the water T-piece.
Installing the 3-Way Housing:
The 3-way housing can be installed according to your preference.
Since this housing no longer contains a thermostat insert, the installation direction is not critical.
Thermostat Kit 74–85 HP Version for FIAT 124 Spider
Our specially developed Thermostat Kit 74–85 HP Version offers an optimized solution for effectively cooling the engine of your FIAT 124 Spider. The kit includes:
Problem identified – solution created:
Experience has shown that incorrect installation of the original thermostat, as well as improper bleeding of the cooling system, often leads to engine overheating. To counter this issue, we have developed a new, easy-to-install solution: the cooling circuit reliably opens at just 72 °C, helping to prevent engine damage caused by overheating.
Note:
For detailed installation instructions, please refer to our Expert Tip.
Upgrade your FIAT 124 Spider’s engine cooling with this high-quality thermostat kit – for improved performance and longer engine life!
€119,00
